A Qn-SOLAR Partner Application Case in Low-Light Energy Harvesting

As photovoltaic technologies continue to expand beyond traditional power plants and rooftops, reliable energy supply for low-power, off-grid infrastructure is becoming an increasingly important application scenario.

One such example is small-scale weather stations, which are widely deployed across agriculture, transportation, and environmental monitoring. These systems require long-term stability, minimal maintenance, and reliable power—often in locations where grid access is limited or unavailable.

Through our partnership with Huacai Energy, Qn-SOLAR is pleased to share an application case where perovskite solar cell technology is used to power a fully autonomous weather monitoring system.

Why Power Supply Is the Bottleneck for Small Weather Stations

Conventional power solutions face clear limitations:

Grid dependence restricts deployment flexibility

Silicon PV performance drops sharply under weak or diffuse light

Frequent battery replacement increases operating costs

In contrast, perovskite solar cells demonstrate strong energy yield under low-light conditions, making them a promising solution for continuous power supply in challenging environments.

System Architecture and Design

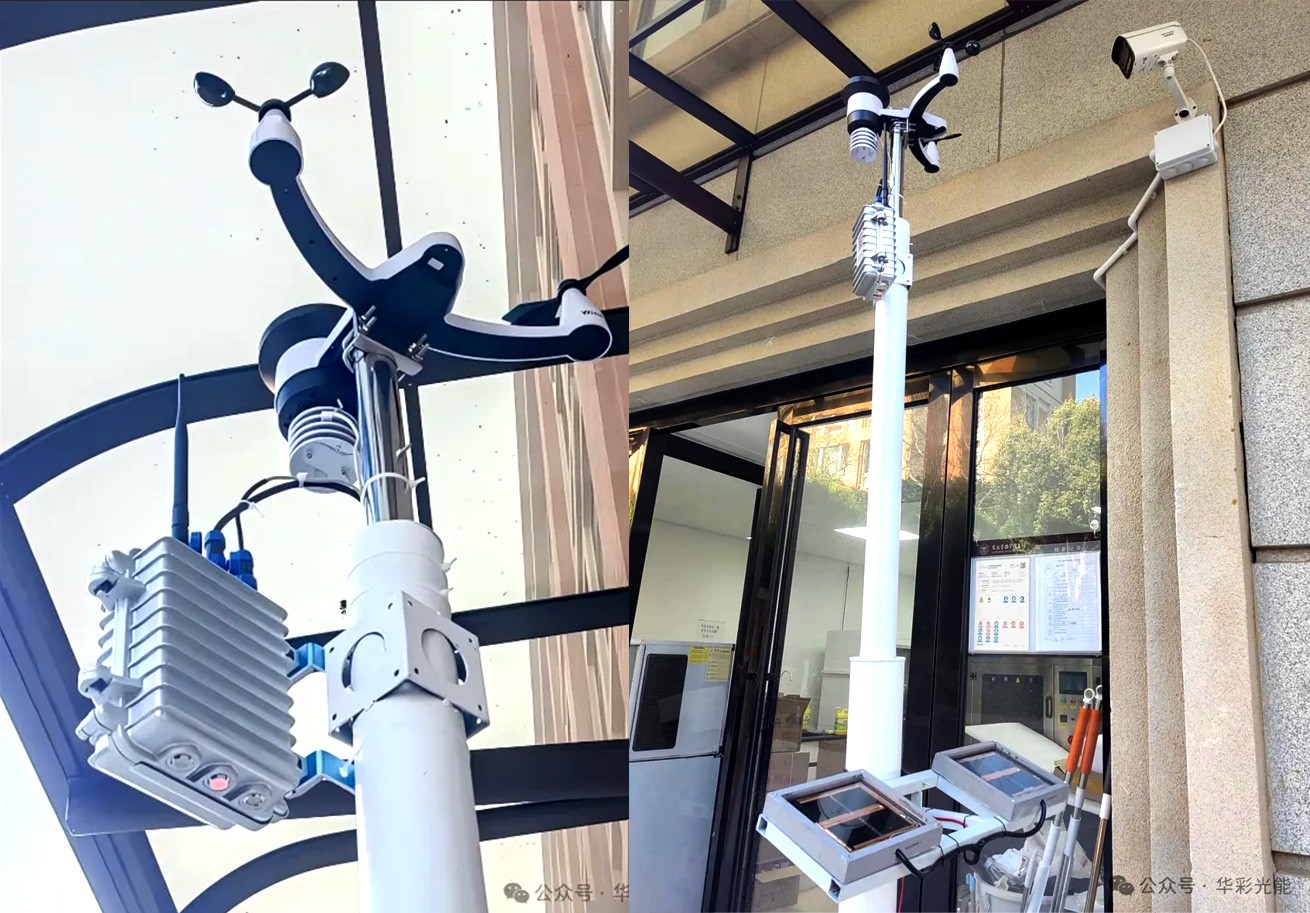

The autonomous weather station system developed by Huacai Energy consists of:

Perovskite solar power modules

Energy storage units

Power management IC (PMIC)

Meteorological sensor array

Data transmission module

Together, these components form a self-sustaining, off-grid monitoring system designed for long-term outdoor operation.

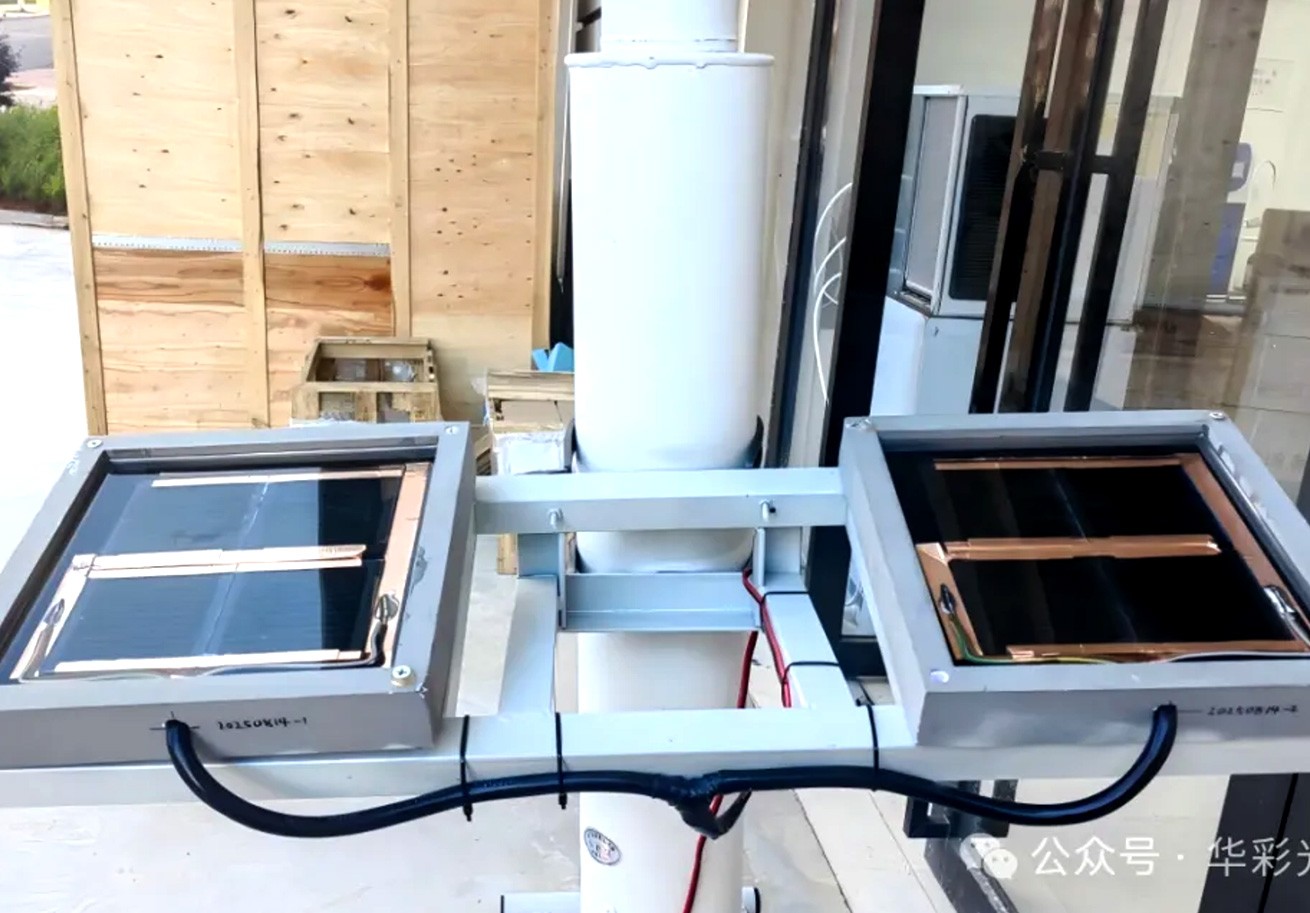

Power Generation Module

7 cm × 7 cm perovskite cell arrays (series-parallel configuration)

Capable of meeting base load requirements under weak illumination

Special outdoor encapsulation ensures long-term durability

Power Management & Storage

Ultra-low-power DC-DC converters (standby current <10 mA)

500 mAh solid-state lithium battery enables up to 72 hours of operation without light

Intelligent charge-discharge management extends battery lifespan to over 10 years

Environmental Robustness

IP67 protection rating

Operating temperature range: –40°C to +60°C

UV-resistant housing and anti-corrosion coating for outdoor reliability

Key Technical Innovations

High Efficiency Under Weak Light

Material engineering enables 20% efficiency at 200 lux, approximately 40% higher than conventional solutions.

Hybrid Energy Storage Strategy

Supercapacitors handle peak power demand

Lithium batteries provide sustained energy supply

Overall system reliability improved by 60%

Dynamic Energy Management

Adaptive algorithms predict power generation based on historical weather data, dynamically adjusting:

Sensor sampling frequency

Data transmission intervals (every 3 minutes)

This ensures optimal energy utilization.

Self-Cleaning Surface Treatment

Nano-structured hydrophobic coatings reduce dust accumulation by 80%, significantly improving performance in dusty environments.

Modular Design

Power, sensing, and communication modules can be replaced independently, simplifying on-site maintenance and reducing lifecycle costs.

Performance Compared with Conventional Solutions

Energy Yield

At 100 lux illumination, the perovskite system generates 2–5× more power than silicon-based PV, with even greater advantages under forest canopy or overcast conditions.

Environmental Adaptability

In low-temperature, high-humidity tests, performance degradation was only one-quarter of traditional systems, making it suitable for high-altitude and cold regions.

Ease of Deployment

Total system weight <10 kg

No specialized installation required

Single-person deployment in under 5 minutes

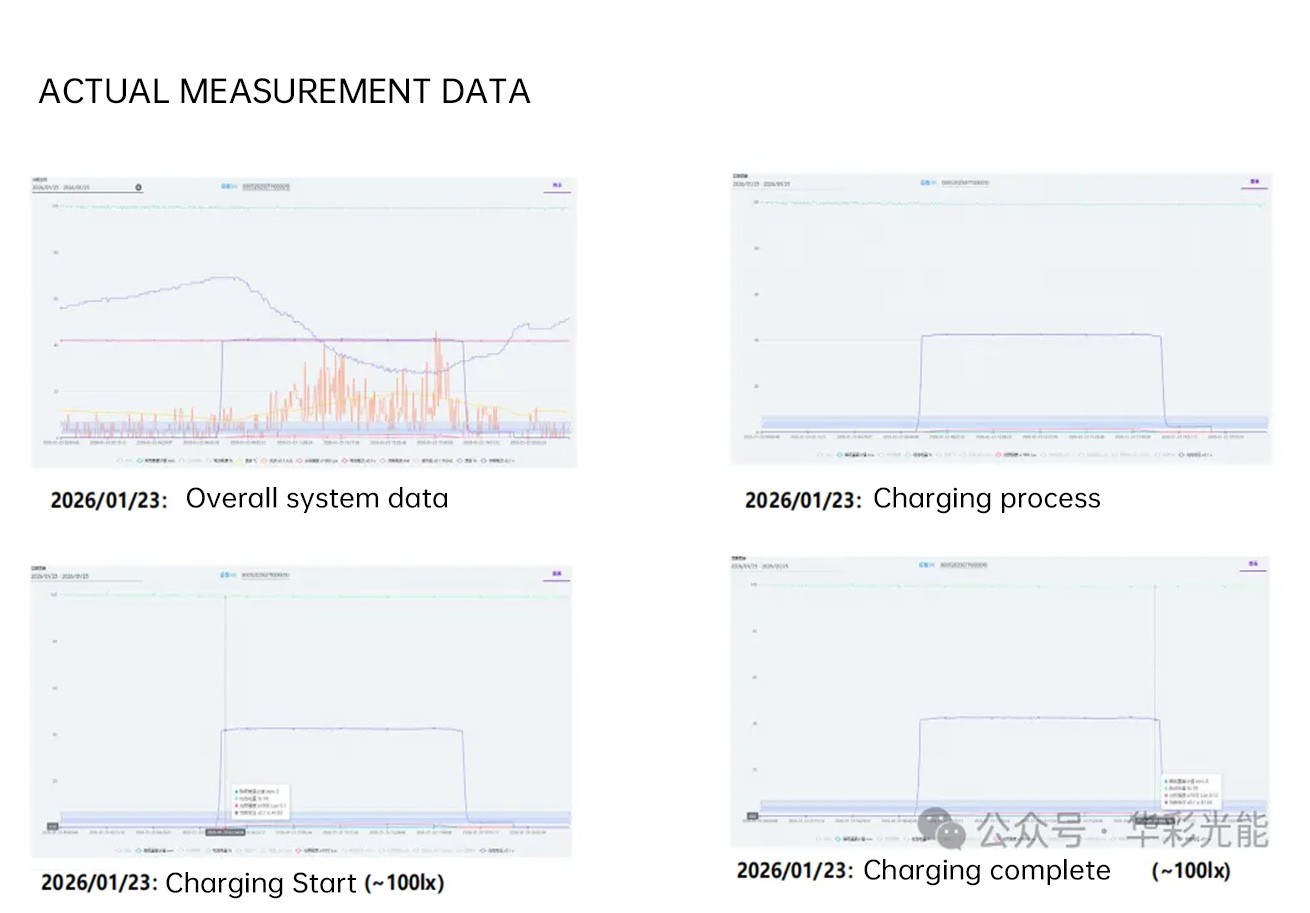

Field Test Results

Over 3,000 hours of average fault-free operation across 50 pilot systems

Six months of continuous operation in plateau regions with extreme temperature variation and strong UV exposure

System availability reached 99.2%

During consecutive weak-light tests (approx. 100 lux), the system successfully maintained continuous monitoring of:

Temperature

Humidity

Wind speed

Solar radiation

And other key meteorological parameters

Qn-SOLAR Perspective

This application case highlights the practical value of perovskite solar technology in low-light, low-power IoT scenarios.

From Qn-SOLAR’s perspective, the future of photovoltaics is not only about higher efficiency at utility scale, but also about expanding energy access to decentralized, mission-critical systems—especially in environments where conventional solutions struggle.

By working closely with technology partners like Huacai Energy, we see growing potential for PV-powered sensing, monitoring, and autonomous infrastructure, supporting a broader and more resilient energy ecosystem.
